LED Modules for Signage
LED Linear Lighting Solutions

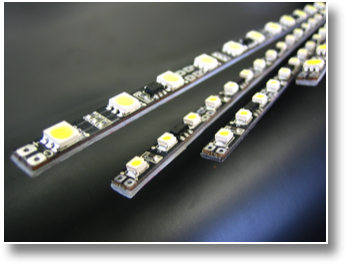

The light-bars we manufacture find their purpose in a wide range of applications. Our clients have put them in coves (see below), edge lit signs, light-boxes, or plastered them across whole buildings to create awesome lighting effects (Omni Hotel Dallas).
They're pretty flexible also. You can bend them back (there are limits I will reveal), cut them every 3 LED chips (or 2 inches), and they come in a wide variety of fancy colors.
To make things simple for you, we've decided to make them with wires coming out on both ends. So if you feel the need to cut them, you can still use the remaining piece without having to resort to that inconvenience called soldering.
If you need to know more, please download our
brochure or give us a call.
show
System Type:
Rigid LED Light Fixture
show
Circuit Type:
12VDC; Parallel
show
Ingress Protection Rating:
IP00
show
Beam Angle:
120˚
show
Cut Postitions:
Every 3 LEDs (every 2")
show
Rated Life (L70):
30000 hours
show
Control Options:
Dimm and Toggle; PWM
show
Connection Options:
3M VHB tape
show
Operational Temperature Range:
-4˚F - 104˚F
UL Recognized, RoHS, Puls Width Modulation, IP66

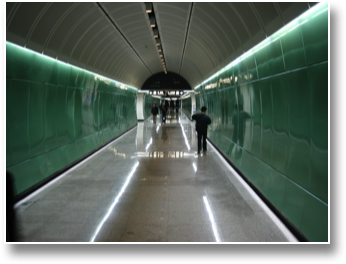

Subway Channel Letter
show

FIXTURE NAME

FIXTURE DIMENSIONS

AVAILABLE COLORS

POWER CONSUMPTION

LUMEN OUTPUT (WHITE)

show

LED-SB-HI-600-C

24" x 0.24" x 0.14"

White 27/30/35/65; Red; Green; Blue

8.65W

1008 lumen (6500 Kelvin)

show

LED-SL-CL-420-C

16.5" x 0.2" x 0.14"

White 27/65; Red; Green; Blue

3.4W

250 lumen (6500 Kelvin)
