Eurocom EAGLE LED 160˚
Eurocom's new line of wide beam angle LED modules combines the superior brightness of our standard 120˚ beam angle LEDs with a lens that spreads the light 160˚.
The wide beam angle permits you do build much more shallow channel letters and at the same time use significantly less LEDs for your installs. This not only saves money in materials, but also in energy consumption, making not only you but also your client one happy customer.
Download EAGLE-LED flyer
Eurocom's new line of wide beam angle LED modules combines the superior brightness of our standard 120˚ beam angle LEDs with a lens that spreads the light 160˚.
The wide beam angle permits you do build much more shallow channel letters and at the same time use significantly less LEDs for your installs. This not only saves money in materials, but also in energy consumption, making not only you but also your client one happy customer.
Download EAGLE-LED flyer
show
show
show
show
show
show
show
show
show
System Type:
Flexible LED String
Circuit Type:
12VDC; Parallel
Ingress Protection Rating:
IP65
Beam Angle:
160˚
Cut Postitions:
Every Module
Rated Life (L70):
50000 hours @ 80˚F ambient Temperature
Control Options:
Dimm and Toggle
Connection Options:
Pop rivet or 3M tape
No. Modules per Package:
50 Modules


show
show
show
FIXTURE NAME
FIXTURE DIMENSIONS
AVAILABLE COLORS
POWER CONSUMPTION
LUMEN OUTPUT (WHITE)
Price

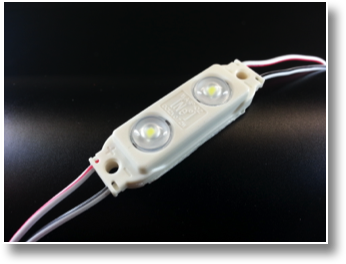

LED-EAGLE-02
2" x 0.6" x 0.35"
White 6500˚ Kelvin
0.72W/module
70 Lumen/module
$75/bag of 50 modules ($1.50/module)

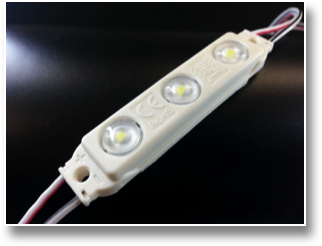

LED-EAGLE-03
2.8" x 0.6" x 0.35"
White 6500˚ Kelvin
1.2W/module
105 lumen/module
$90 bag of 50 ($1.80/module)

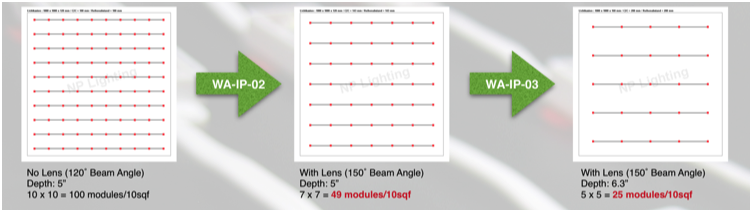

Light-box Layout Example:
The Eagle LED let you not only reduce the total amount of LEDs needed to illuminated a specific surface, but the reduction in quantity also saves money in terms of LEDs needed and energy consumed!
The Eagle LED let you not only reduce the total amount of LEDs needed to illuminated a specific surface, but the reduction in quantity also saves money in terms of LEDs needed and energy consumed!
