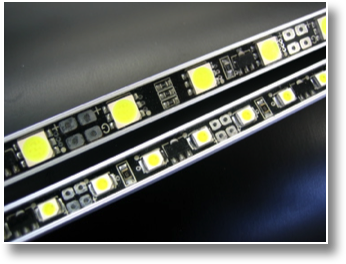

LED Linear Lighting Solutions
The light-bars we manufacture find their purpose in a wide range of applications. Our clients have put them in coves (see below), edge lit signs, light-boxes, or plastered them across whole buildings to create awesome lighting effects (Omni Hotel Dallas).
They're pretty flexible also. You can bend them back (there are limits I will reveal), cut them every 3 LED chips (or 2 inches), and they come in a wide variety of fancy colors.
To make things simple for you, we've decided to make them with wires coming out on both ends. So if you feel the need to cut them, you can still use the remaining piece without having to resort to that inconvenience called soldering.
Download Specification Brochure: Download
The light-bars we manufacture find their purpose in a wide range of applications. Our clients have put them in coves (see below), edge lit signs, light-boxes, or plastered them across whole buildings to create awesome lighting effects (Omni Hotel Dallas).
They're pretty flexible also. You can bend them back (there are limits I will reveal), cut them every 3 LED chips (or 2 inches), and they come in a wide variety of fancy colors.
To make things simple for you, we've decided to make them with wires coming out on both ends. So if you feel the need to cut them, you can still use the remaining piece without having to resort to that inconvenience called soldering.
Download Specification Brochure: Download
show
show
show
show
show
show
show
show
show
System Type:
Rigid LED Light Fixture
Circuit Type:
12VDC; Parallel
Ingress Protection Rating:
IP66
Beam Angle:
120˚
Cut Postitions:
Every 3 LEDs (every 2")
Rated Life (L70):
30000 hours
Control Options:
Dimm and Toggle; PWM

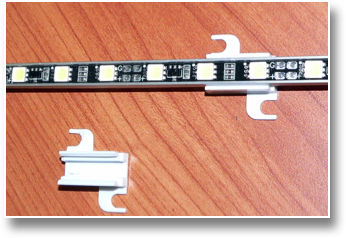

Connection Options:
Snap-On or 3M VHB tape
Operational Temperature Range:
-4˚F - 104˚F


show
show
show
show
show
FIXTURE NAME
FIXTURE DIMENSIONS
AVAILABLE COLORS
POWER CONSUMPTION
LUMEN OUTPUT (WHITE)
LED-SB-IP-HI-600-C
24" x 0.32" x 0.17"
White 27/30/35/65; Red; Green; Blue; RGB
8.65W
1008 lumen (6500 Kelvin)
LED-SB-IP-HI-1200-C
48" x 0.32" x 0.17"
White 27/30/35/65; Red; Green; Blue; RGB
17.3W
2016 lumen (6500 Kelvin)
LED-SL-IP-420-C
16.6" x 0.28" x 0.2"
White 27/65
4.1W
560 lumen (6500 Kelvin)
LED-SL-IP-840-C
33.2" x 0.28" x 0.2"
White 27/65
8.2W
1120 lumen
