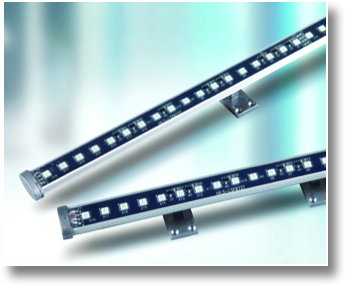

LED Light Fixture with Swivel Base
The NP Lighting swivel joint LED fixtures are especially designed for exterior use. An ingress protection rating of 66 makes sure that both the LEDs as well as the circuitry are optimally protected from the elements. The elegant aluminum housing is available in both anodized silver and in black. Moveable swivels at the underside of the fixtures allow you to easily secure the light fixture to almost any surface while providing a pivot angle of 160˚. These light fixtures are available in 25cm, 50cm, 75cm, and 1 meter length.
The fixtures can be ordered with either a standard 120˚ beam angle or a with a special lens to achieve a beam angle of 80˚.
Download spec sheet: LED Wall Washers
The NP Lighting swivel joint LED fixtures are especially designed for exterior use. An ingress protection rating of 66 makes sure that both the LEDs as well as the circuitry are optimally protected from the elements. The elegant aluminum housing is available in both anodized silver and in black. Moveable swivels at the underside of the fixtures allow you to easily secure the light fixture to almost any surface while providing a pivot angle of 160˚. These light fixtures are available in 25cm, 50cm, 75cm, and 1 meter length.
The fixtures can be ordered with either a standard 120˚ beam angle or a with a special lens to achieve a beam angle of 80˚.
Download spec sheet: LED Wall Washers
show
show
show
show
show
show
show
show
System Type:
Rigid Linear Light Fixture with swivel
Fixture Type
Anodized Aluminum (Silver/Black)
Ingress Protection Rating:
IP65
Beam Angle:
120˚ or 80˚
Circuit Type:
24VDC with Current Controlls
Rated Life (L70):
30000 hours @ 80˚F ambient Temperature
Control Options:
Dimm and Toggle: DMX 512
Attachment Options:
Swivel joints (see picture)
show
show
show
show
show
FIXTURE NAME
FIXTURE DIMENSIONS
AVAILABLE COLORS
POWER CONSUMPTION
LUMEN OUTPUT (WHITE)
LED-LSW-IP-HI-250-C
250mm x 25mm x 30.5mm
White 27/30/35/65; Red; Green; Blue; RGB
4.5W/fixture
495 lumen
LED-LSW-IP-HI-500-C
500mm x 25mm x 30.5mm
White 27/30/35/65; Red; Green; Blue; RGB
9W/fixture
990 lumen
LED-LSW-IP-HI-750-C
750mm x 25mm x 30.5mm
White 27/30/35/65; Red; Green; Blue; RGB
13.5W/fixture
1485 lumen
LED-LSW-IP-HI-1000-C
1000mm x 25mm x 30.5mm
White 27/30/35/65; Red; Green; Blue; RGB
18W/fixture
1980 lumen
