ED LED Posterbox Modules

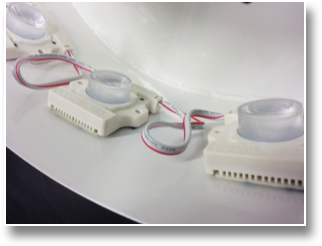

ED-LED have been fitted with an optical lens that bundles the light and reduces the beam angle from the standard 120° to either 12° x 40° or 15° x30°. This makes the ED-LED system optimally suited for both single sided and double sided poster boxes. Also, due to the flexibility of the string system you are not bound to linear surface applications but are free to use them in round and non-linear installations. You are also able to adjust the brightness of your sign by varying the distance between each module.
Download Product Flyer
ED-LED have been fitted with an optical lens that bundles the light and reduces the beam angle from the standard 120° to either 12° x 40° or 15° x30°. This makes the ED-LED system optimally suited for both single sided and double sided poster boxes. Also, due to the flexibility of the string system you are not bound to linear surface applications but are free to use them in round and non-linear installations. You are also able to adjust the brightness of your sign by varying the distance between each module.
Download Product Flyer
show
show
show
show
show
show
show
show
show
System Type:
Box Lighting or Wall Washing System
Circuit Type:
12VDC; Parallel
Ingress Protection Rating:
IP65
Beam Angle:
10˚ x 40˚
Available Colors
Cold White
Rated Life (L70):
35000 hours @ 80˚F ambient Temperature
Control Options:
5V PWM Dimming
Connection Options:
Pop rivet or 3M tape
Certification
RoHS; CE; UL94 V-2


show

show
show
show
show
show
show
show
show
show
show
show
Technical Data


Product:
LED-ED-IP-HP1-01W63K125
LED-ED-HP3-01W69K230
No. of LEDs per branch
20
15
Center to Center Distance btw. LED
Variable: 2“ up to 4.9“
Variable: 2.75“ up to 9“
Light Output
100 Lumen
277 Lumen
Cut Positions:
after each module
after each module
Input Voltage:
12VDC
12VDC
Power Consumption
1.32W/module
2.7W/module
Color Temperature
6000˚ Kelvin
6900˚ Kelvin
Efficiency (lm/Watt):
75lm/W
100lm/W
Beam Angle:
10˚ x 40˚
10˚ x 40˚
Dimming Abilities
5V PWM Signal (Traxon/Ecue compatible)
5V PWM Signal (Traxon/Ecue compatible)
